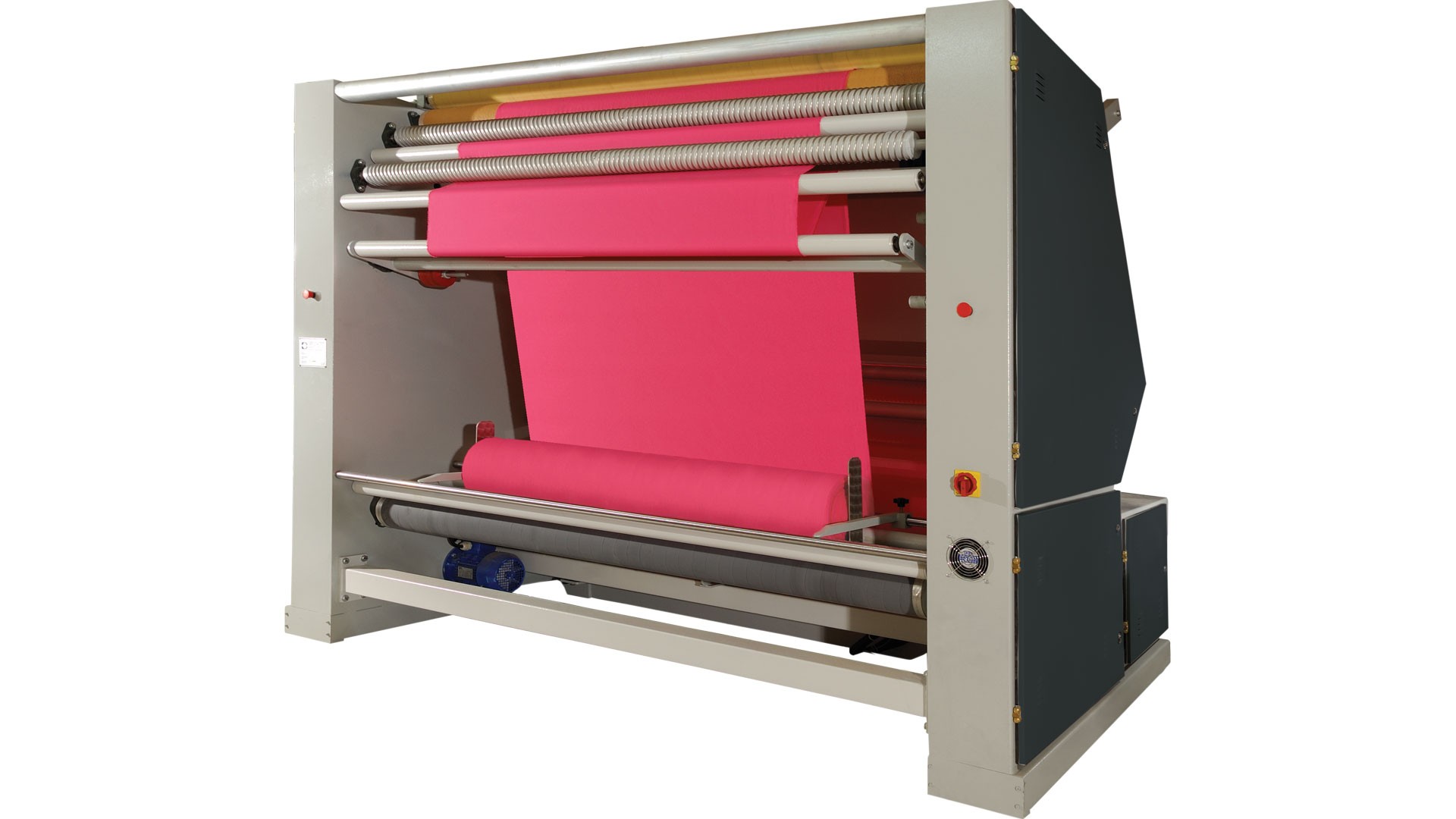

RF/A-22.5 KNITTED FABRIC INSPECTION AND ROLLING MACHINE

This machine is a roll winding and controlling  machine for technical textiles, knitted and elastic woven fabrics.

The tension system is adjusted according to the technical characteristics of the fabrics and thus the meter of tensionless fabric is measured properly.

Machine speed, roll hardness, inside-outside rolling mode, and all the parameters are commuted on the user-friendly operator panel.

The machine stops automatically at the end of the fabric and at the adjusted meter according to the fabric defect map.

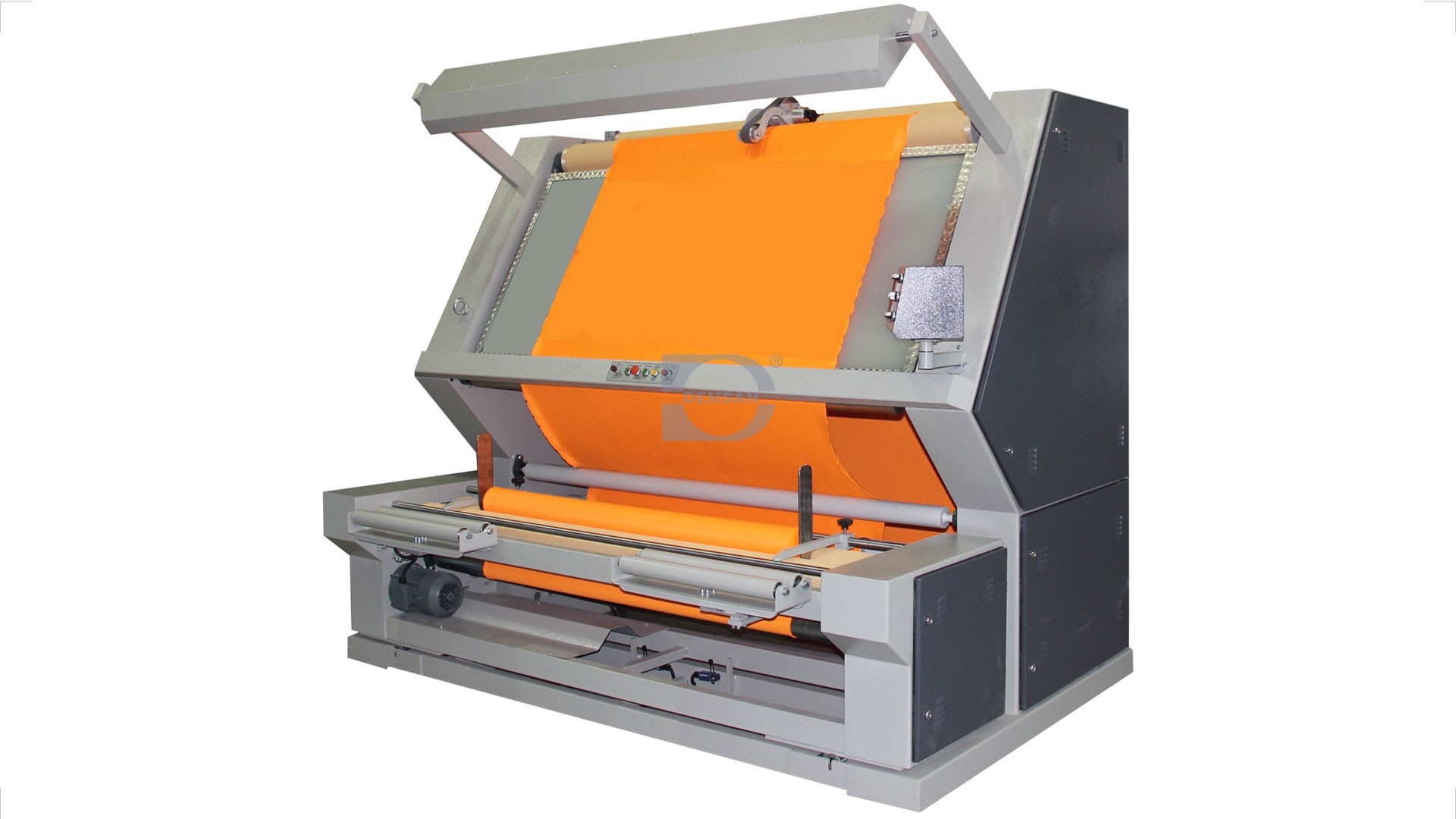

The illuminated control screen allows the detection and correction of defects on the fabric before the rolling process.

 OPTIONAL SYSTEMS

Motorized roll lifting system, modular roll box, end to end sewing machine and J-Box system providing non-stop operation are applicable for roll fabric inlets.

Elastic fabrics are rolled tensionless with the motorized driven roll unloading system at the entrance of the machine.

The fabric meter is measured properly without adjustment thanks to the automatic tension regulation system defined to the PLC System according to the fabric types.

The tubular knitted fabric is made cut and open width with triangle groups at the entrance of the machine.

Perfect edge rolls are obtained with the air blowing system and the expander groups to eliminate the edge curves and wrinkles.

The stainless steel basin is under the illuminated control screen and allows the using of solvent for defects on the fabric before the rolling process.

There are many alternate groups such as fabric cutting system, weighting system, barcode label printing system after the rolling process.
